Tipper Truck

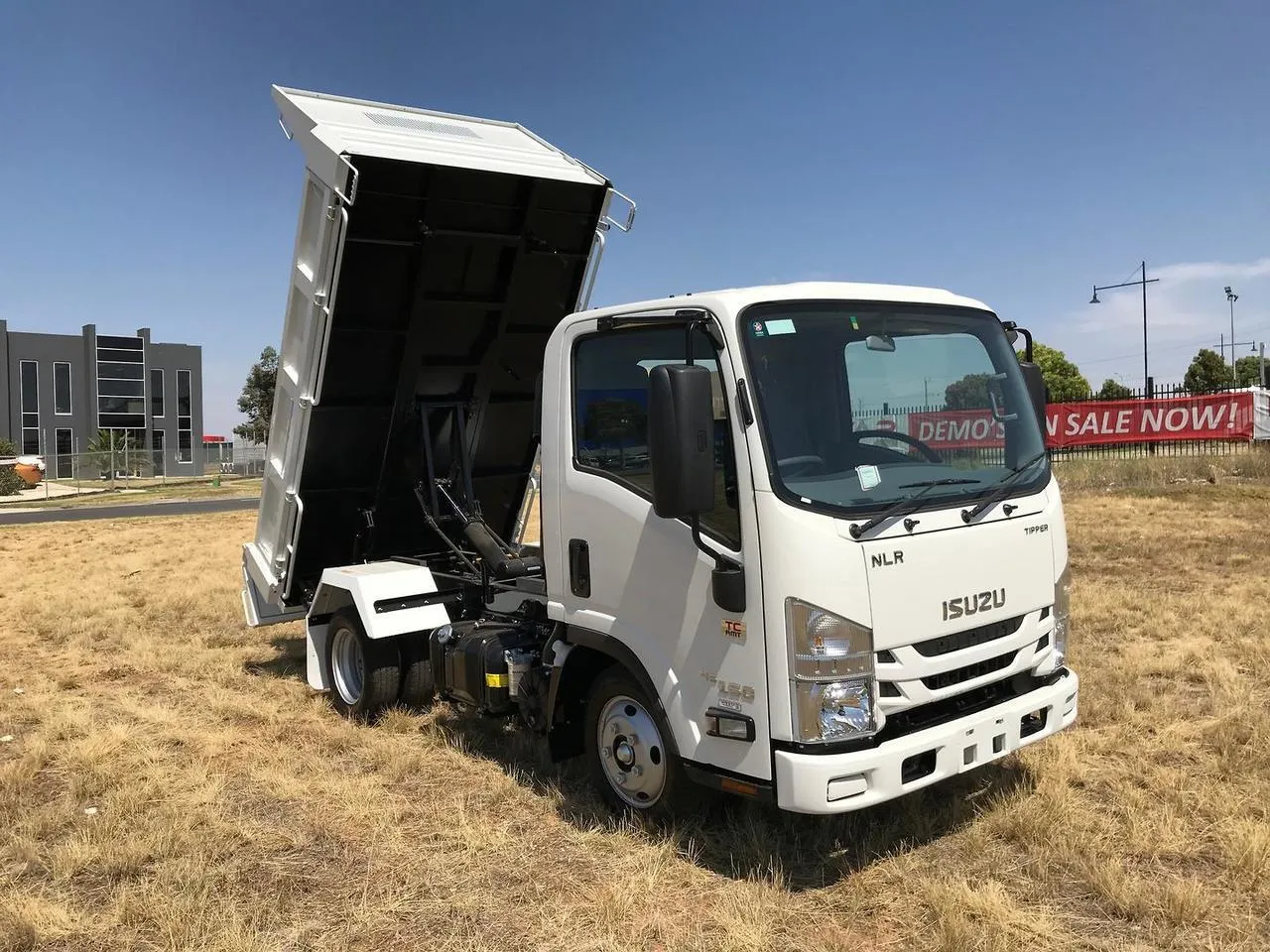

Isuzu NLR Tipper

Isuzu NLR 45-150 · Asset #REV-TRK-001

Reliable light-duty Isuzu NLR tipper truck ideal for hauling soil, gravel, sand, rubble and construction materials. Perfect for earthworks, demolition and landscaping projects.

Specifications

Make / Model	Isuzu NLR 45-150
GVM	4,500 kg
Licence	Driver's Licence
Insurance	Fully Covered

View full specifications ▼

Specification	Value
Engine Model	Isuzu 4JJ1-TCS
Engine Type	4 cylinder, 16 valve, DOHC
Displacement	2,999 cc
Max Power (DIN-NET)	110 kW (148 HP) @ 2,800 rpm
Max Torque (DIN-NET)	375 Nm @ 1,600–2,800 rpm
Induction	Variable nozzle turbocharger with intercooler
Fuel Injection	Direct injection high pressure common rail
Emissions	Euro V / ADR 80/03, EEV compliant
Transmission	5-speed manual (Isuzu MYY-5T)
GVM	4,500 kg
GCM	8,000 kg
Tare Weight	2,725 kg
Front Axle Capacity	2,600 kg (Isuzu FI026)
Rear Axle Capacity	5,000 kg (Isuzu R050)
Suspension (Front)	Independent coil springs with hydraulic dampers
Suspension (Rear)	Taper leaf main & helper spring
Brakes	Auto-adjusting front & rear disc, dual circuit hydraulic
Steering	Power assisted rack and pinion
Turning Circle (kerb to kerb)	8.9 m
Tyres	195/75R16C Michelin Agilis Tubeless
Fuel Tank	75 L steel (frame mounted)
Electrical System	24V, 90A alternator
Tipper Body	All steel, drop sides, auto-release two-way tailgate
Tipper Volume	2.0 m³
Raise / Lower Time	20 sec raise / 20 sec lower
Deck Plate Thickness	3.2 mm
Top Speed (calculated)	108 km/h @ 4,500 kg GVM
Warranty	3 years / 100,000 km / 2,000 hours

Specifications subject to change without notice. Contact Revma for confirmation before hire.

Hire Rates

Daily	$190
Weekly	$1,140
Monthly	$3,990
Deposit (refundable)	$500

All rates exclude GST. Delivery available on request.
